Servo automatic Straightening Hydraulic Press Supplier in China
MEILI is experienced and dynamic. It is a team of people who love designing machinery and never stop innovating.

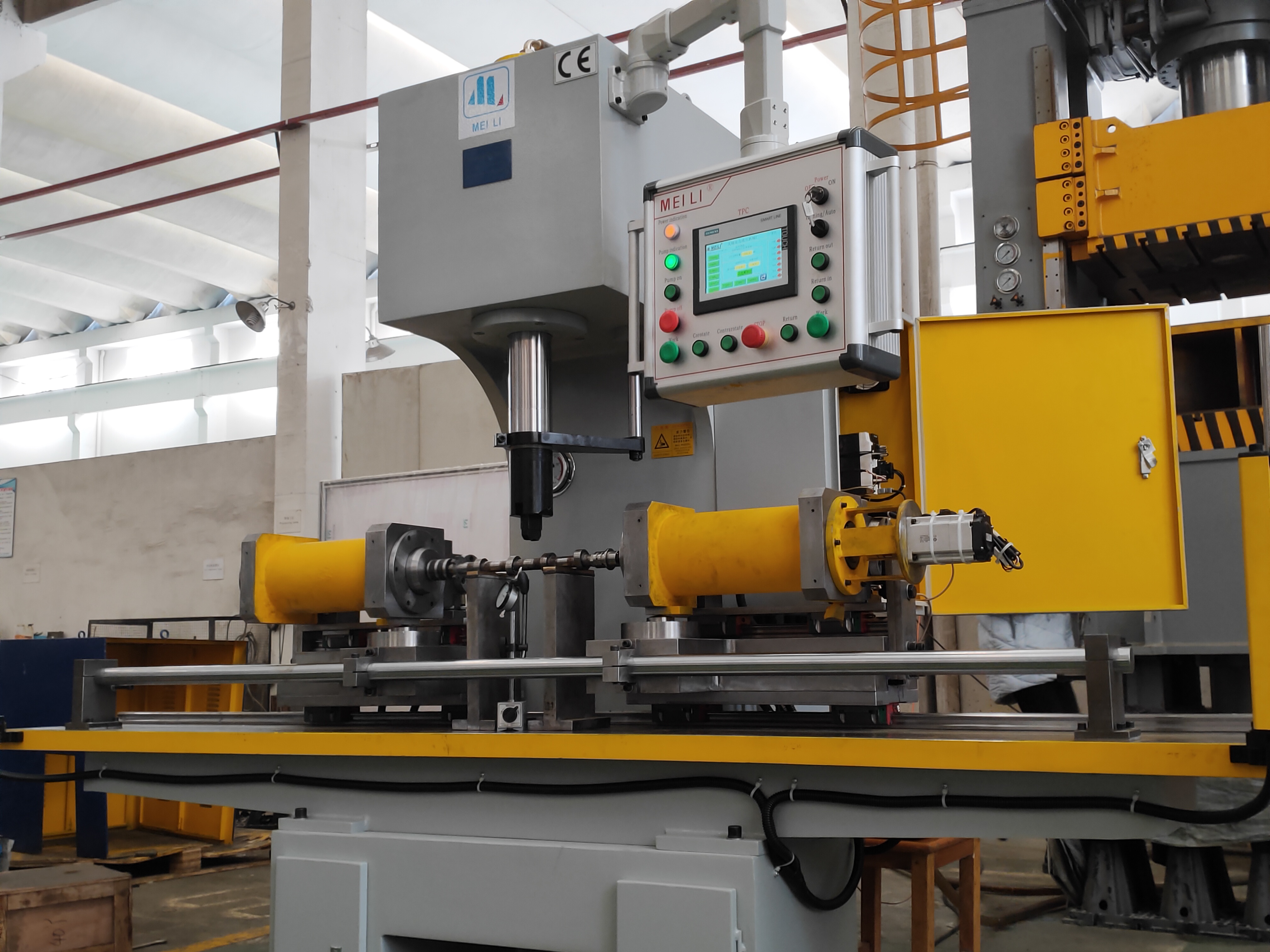

MEILI hydraulic straightening machine is mainly used for straightening and press-fit small and medium straight shaft parts, especially for shaft parts after quenching. The accuracy can be corrected to within 0.03mm. Semi-automatic straightening machine can accurately set the stroke of the indenter through the computer programming system, effectively control the depression distance, and not repeatedly align, which greatly improves the work efficiency and alignment accuracy.
Automatic C frame straightening hydraulic press for sale are mainly suitable for the press-fitting of shaft parts, bending of plate parts, stamping, sleeve type, stretching of simple parts, and press-forming of plastic products. Machine tools, internal combustion engines, textile machinery, shafts, bearings, washing machines, automotive motors, air-conditioning motors, military industrial enterprises, electrical appliances, and assembly lines of foreign-funded enterprises are used.
| Description | Unit | 6.3T | 10T | 16T | 25T | 40T | 63T | 100T | 160T | 200T | 250T | 315T | 400T | 500T |
| Force | KN | 6.3 | 10 | 16 | 25 | 40 | 63 | 100 | 160 | 200 | 250 | 315 | 400 | 500 |
| Table size | L-R | mm | 1000 | 1600 | 1600 | 1600 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 3000 | 3000 | 3000 |
| F-B | mm | 300 | 300 | 300 | 350 | 400 | 500 | 500 | 500 | 600 | 600 | 600 | 600 | 600 |
| Max opening height | mm | 300 | 300 | 350 | 350 | 400 | 400 | 400 | 500 | 500 | 600 | 600 | 700 | 700 |
| Max stroke | mm | 250 | 250 | 300 | 300 | 300 | 300 | 300 | 400 | 400 | 500 | 500 | 500 | 500 |
| Throat Depth | mm | 170 | 170 | 200 | 200 | 200 | 300 | 300 | 300 | 350 | 350 | 350 | 350 | 350 |
| Down speed | mm/s | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 20 | 20 | 20 | 20 | 20 |
| Return speed | mm/s | 70 | 70 | 70 | 70 | 60 | 60 | 60 | 60 | 50 | 50 | 50 | 50 | 50 |
| Height from working table | mm | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 |
| Powder of motor | KW | 3 | 3 | 4 | 4 | 5.5 | 5.5 | 7.5 | 11 | 11 | 15 | 15 | 22 | 22 |
Product Tags:
|
|
Servo Automatic Hydraulic Straightening Press 40Tons Moto Pump PLC Images
|
